Pipe Freezing Techniques For Commercial Plumbing Maintenance

Need to Replace a Valve Without Shutting Down the Whole System?

In complex commercial plumbing systems—especially in hospitals, data centers, factories, and multi-unit residential buildings—you can’t always afford a shutdown just to replace a valve or repair a fitting.

That’s where pipe freezing comes in.

This controlled technique uses liquid nitrogen or CO₂ to create a solid ice plug inside the pipe, temporarily blocking flow—without the need to drain the entire system.

For facility maintenance managers, this is a game-changer. You can:

• Prevent system-wide downtime

• Avoid draining hazardous or expensive fluids

• Perform targeted pipe repairs with precision and safety

In this guide, we’ll walk you through:

• How pipe freezing works

• When and where it’s most effective

• Common equipment used

• Key safety protocols

• Which materials and pipe sizes it supports

---

What Is Pipe Freezing and How Does It Work?

Pipe freezing is a non-invasive, maintenance-friendly method used to isolate a section of a pressurized pipe by freezing the liquid inside until it forms a solid plug. Once frozen, technicians can safely:

• Replace valves

• Modify fittings

• Install bypasses

 Process Overview

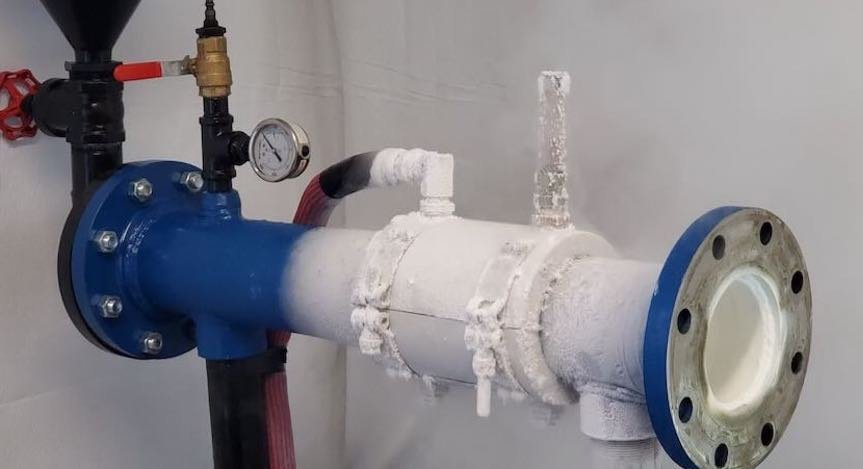

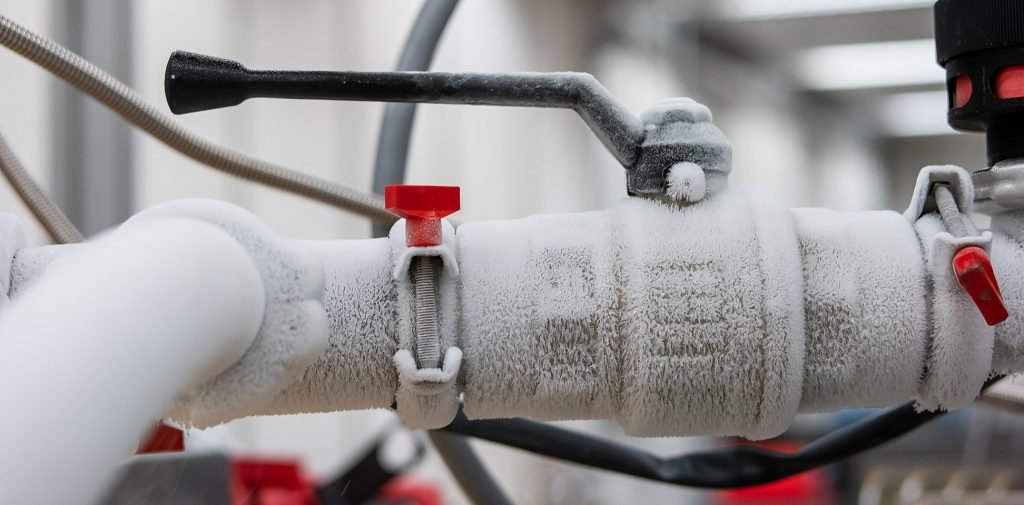

1. A freeze jacket is clamped onto the pipe at the isolation point.

2. Liquid nitrogen (-196°C) or CO₂ (-78.5°C) is injected, cooling the liquid inside the pipe.

3. An ice plug forms within 5 to 20 minutes (depending on diameter and medium).

4. The ice plug holds pressure temporarily—no flow past the frozen point.

5. After repairs, the line is thawed naturally or by applying heat.

📏 Supports Pipe Sizes: From ½” copper and steel up to 12″ carbon or stainless pipe.
⚠️ Not suitable for: Pipes already under vacuum or containing flammable media.

---

Where Pipe Freezing Works Best in Commercial Plumbing

Pipe freezing isn’t a one-size-fits-all solution—but in the right conditions, it’s faster, safer, and cheaper than draining.

🏢 Typical Use Cases:

🧠 Did You Know?
Pipe freezing is often used in emergency boiler repairin Mississuga & Toronto GTA where draining would cause thermal shock or lengthy restart times.

Pipe Freezing Equipment, Tools & Safety Protocols

Pipe freezing is only safe and effective when the right tools, fluids, and procedures are used. Below is a breakdown of the essential equipment and industry-approved safety protocols every technician must follow.

🧰 Core Equipment for Pipe Freezing

---

⚠️ Safety Protocols for Industrial Pipe Freezing

• Use gas-rated PPE: Cryogenic gloves, face shields, and insulated overalls

• Ventilation is critical: Avoid oxygen displacement in enclosed areas

• Never freeze on active fire protection lines unless code permits

• Pressure-test ice plug zone post-freeze for plug integrity

• Place thawing mitigation systems if ambient temperature rises

📌 Pro Tip: Always verify the freezing media is compatible with pipe contents. For example, certain glycol-water mixes require adjusted freeze times and pressures.

---

How Select Plumbing and Heating Performs Freeze-Isolate Repairs with Zero Downtime

Select Plumbing and Heating specializes in controlled pipe isolation services across Mississauga, Toronto, Brampton, and surrounding GTA—helping property managers and industrial clients avoid shutdowns and fluid loss during urgent or planned repairs.

🛠️ Our Pipe Freezing Workflow

1. Pre-Freezing System Assessment
We determine the system type (heating, chilled, compressed air, etc.), pipe diameter, pressure, fluid type, and proximity to critical systems.

2. Safety Setup & Monitoring

• Nitrogen or CO₂ source staging

• Leak-proof jacket installation

• Thermocouple sensors placed pre-and post-freeze zones

• Freeze zone insulated to hold ice plug integrity

3. Controlled Plug Formation
We monitor time, pressure, and thermal behavior to ensure plug integrity under live system pressure.

4. Repair Execution
Once plug integrity is confirmed:

• Valve or fitting is safely removed and replaced

• Additional upgrades can be performed downstream

• System resumes function immediately upon thawing

5. System Recommissioning & Documentation
We provide a post-repair inspection log, temperature readings, and plug duration data—ensuring compliance with industrial maintenance SOPs.

---

🔗 Our Services In Mississuga & Toronto GTA

• ✅ Gas Pipe Installation & Repair

• ✅ Compressed Air Piping Systems

• ✅ Steam Piping Installation

• ✅ Cooling Piping Systems

• ✅ Stainless Steel Piping Systems

• ✅ Water Heater Repair Mississauga (for emergency boiler freeze-ins)

Schedule Professional Pipe Freezing Services in Mississauga & the GTA

Avoid costly shutdowns. Skip the drain time. And complete your repair without disrupting critical operations.

Select Plumbing and Heating brings decades of experience in:

• ❄️ Live pipe freezing with liquid nitrogen or CO₂

• 🔧 Zero-drain valve replacements and isolation repairs

• 🏢 Commercial, industrial, and institutional systems

• 🧪 Safety-certified and code-compliant techniques

From Mississauga to Toronto, we serve:

• Property management companies

• Mechanical contractors

• Manufacturing facilities

• Healthcare institutions

• Government buildings

🔗 Book today and keep your systems flowing—even when you’re frozen.

✅ Request Pipe Freezing Support Now →
✅ Explore Gas & Process Piping Services →
✅ Contact Our Live Response Team →

---

FAQs: Pipe Freezing for Commercial Plumbing Maintenance

1. Can you isolate a pipe without draining the entire system?

Yes. Pipe freezing allows you to form a solid ice plug inside the pipe, blocking flow so you can isolate a section without draining the full system.

2. What pipe sizes can be frozen using nitrogen or CO₂?

Freezing is typically effective on pipe diameters from ½” up to 12″, depending on the fluid, pipe material, and surrounding pressure conditions.

3. Is pipe freezing safe for hot water or steam lines?

Yes, if properly prepared. Steam and hot water systems can be frozen safely with expert planning, insulation, and appropriate purge protocols.

4. How long does a pipe freeze plug last?

A typical ice plug can last 30 minutes to 2 hours or more, depending on pipe insulation, ambient temperature, and coolant method used.

5. Can Select Plumbing and Heating perform pipe freezing in emergency situations?

Absolutely. We provide 24/7 emergency pipe isolation services across the GTA for urgent boiler shutdowns, valve failures, or industrial gas piping repairs.

---

References

• American Society of Plumbing Engineers (ASPE) – Pipe Freezing Guidelines

• Compressed Air and Gas Institute – Industrial Pipe Handling Standards
